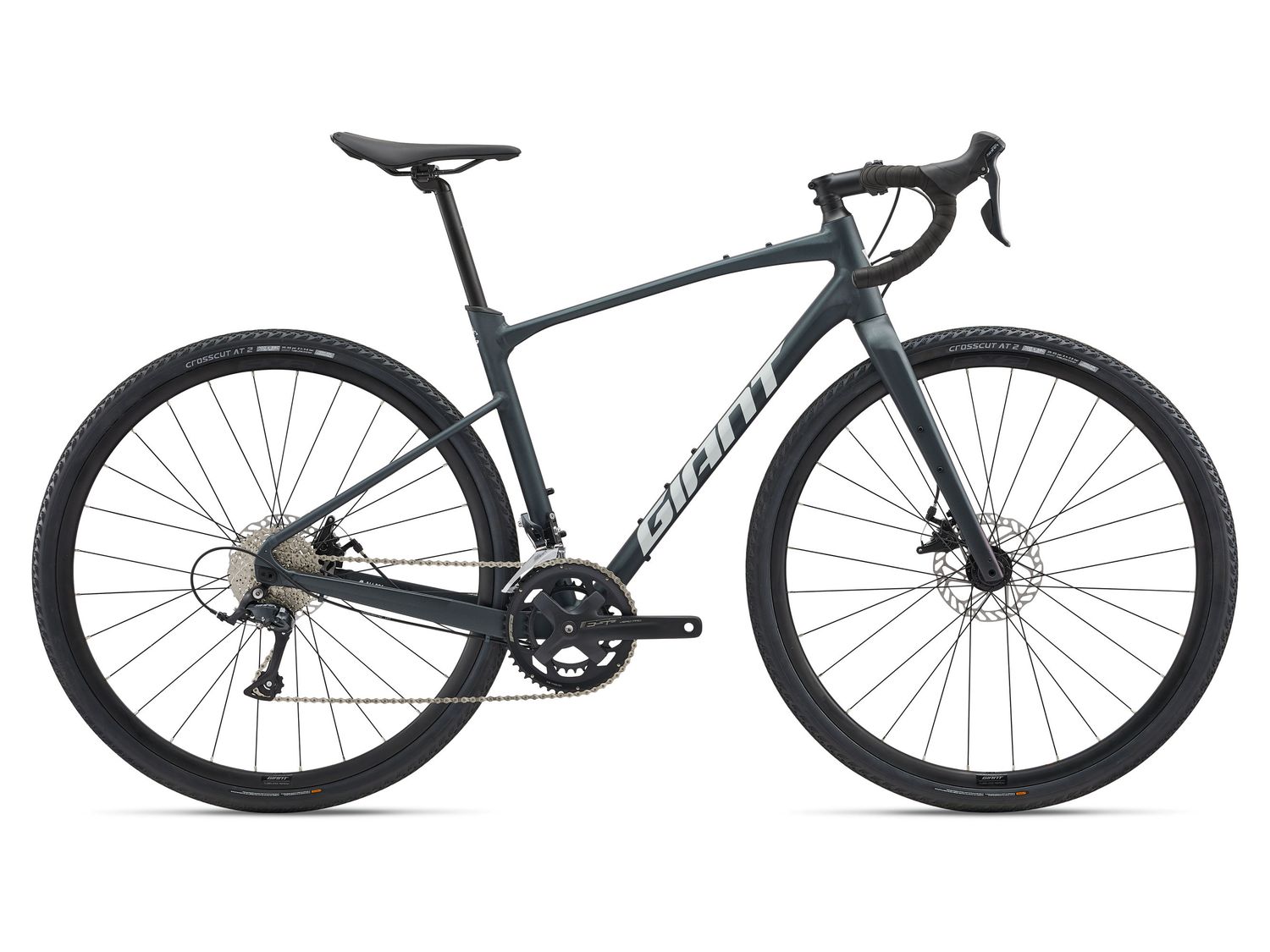

Revolt 2
$1 700.00
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Color
Size
Please choose
Estimated delivery time
Shipping: 7–11 days
In stock
Save this product for later
Revolt 2
Product Details
Brand: Giant
Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Saddle: Giant Approach
Seatpost: Giant D-Fuse, alloy, 14mm offset
Bottom Bracket: Cartridge
Crankset: FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Cassette: Shimano HG400, 11x34
Brakes: Tektro MD-C550 mechanical
Brake Levers: Shimano Sora
Rotors: Giant MPH rotors
Front rotor: 160mm
Rear rotor: 160mm
Grips: Cork tape with gel
Stem: Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Shifters: Shimano Sora, 2x9
Front Derailleur: Shimano Sora
Rear Derailleur: Shimano Sora, long cage
Chain: KMC X9 with Missing Link
Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Tires: Giant CrossCut AT 2, 700x38c, tubeless
The versatile Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
