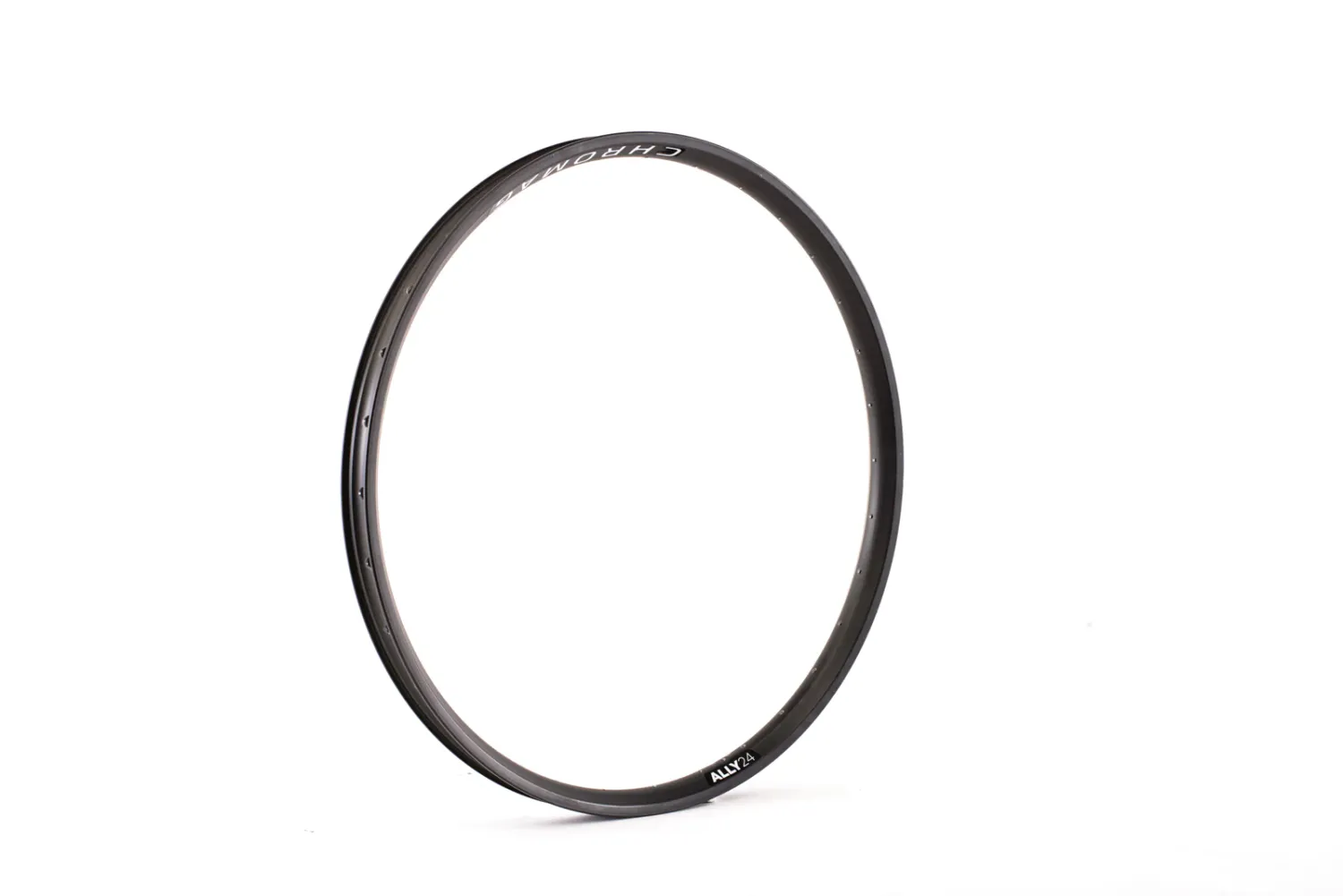

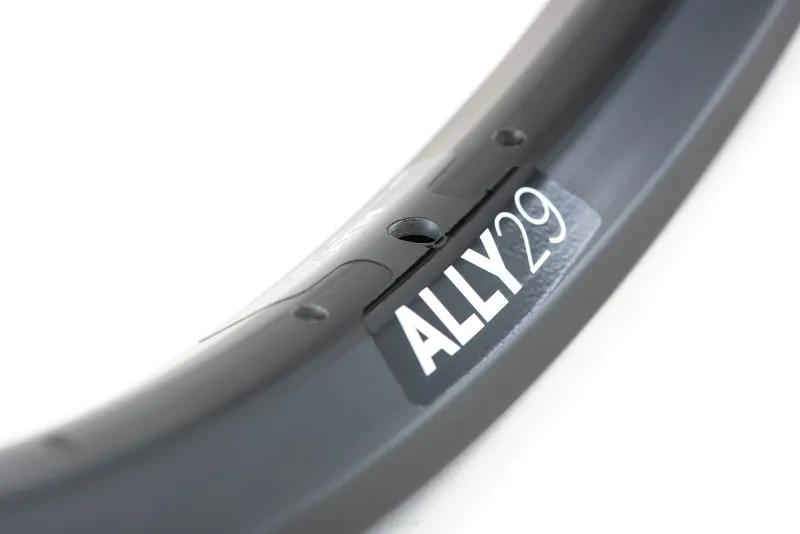

Ally Rim

Building off the BA30 and Phase30 design, the Ally offers the same robust beadwall and 30mm bed but in a pinned construction helping to keep the cost down.

The Ally shares the same cavity construction as the Phase30, with symmetric nipple drilling, designed to get you rolling on a budget.

Material // Premium extruded alloy
Finish // Anodised extrusion / Pinned
Profile // Cavity / Impact resistant design
Tubeless // Tubeless Ready
Rim Weight // 26: 555g / 27.5: 585g / 29: 627g
Internal Width // 30mm
Valve // Presta
Max Tire Pressure 2.4" // 45PSI
Max Tire Pressure 2.8" // 30PSI
Max Spoke Tension // 125KgF
Build Info // 24" ERD: 489 / 26" ERD: 540mm / 27.5" ERD: 564mm / 29" ERD: 602mm
Hole Count // 32
