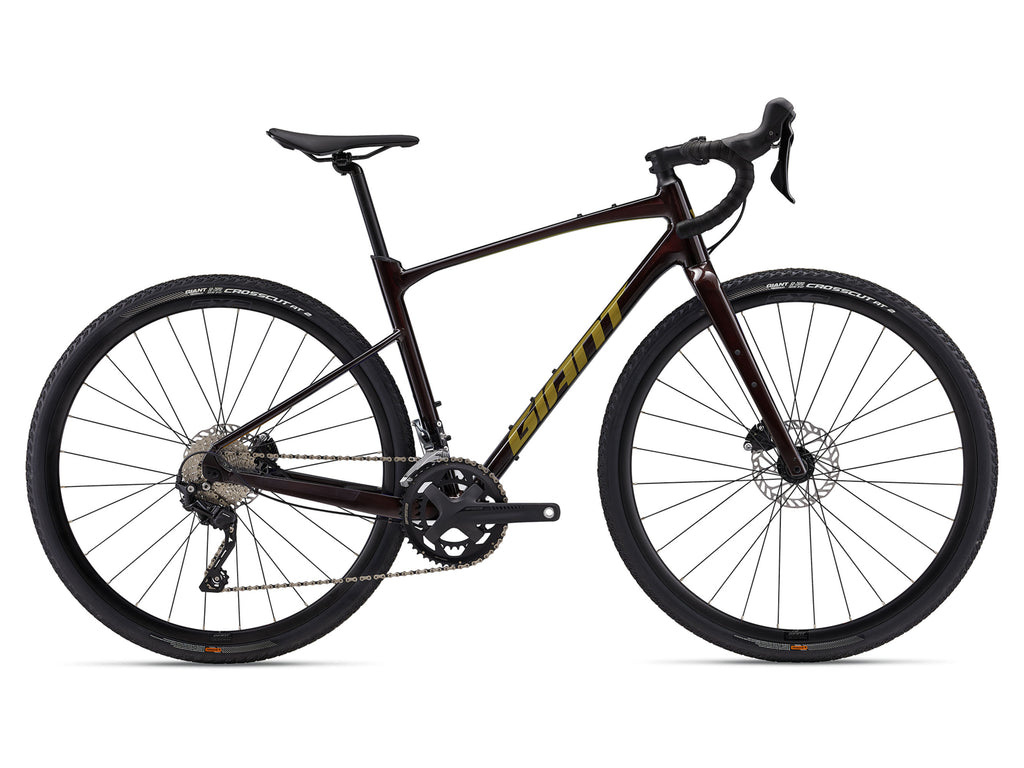

  • Black bicycle with brand name on a white background

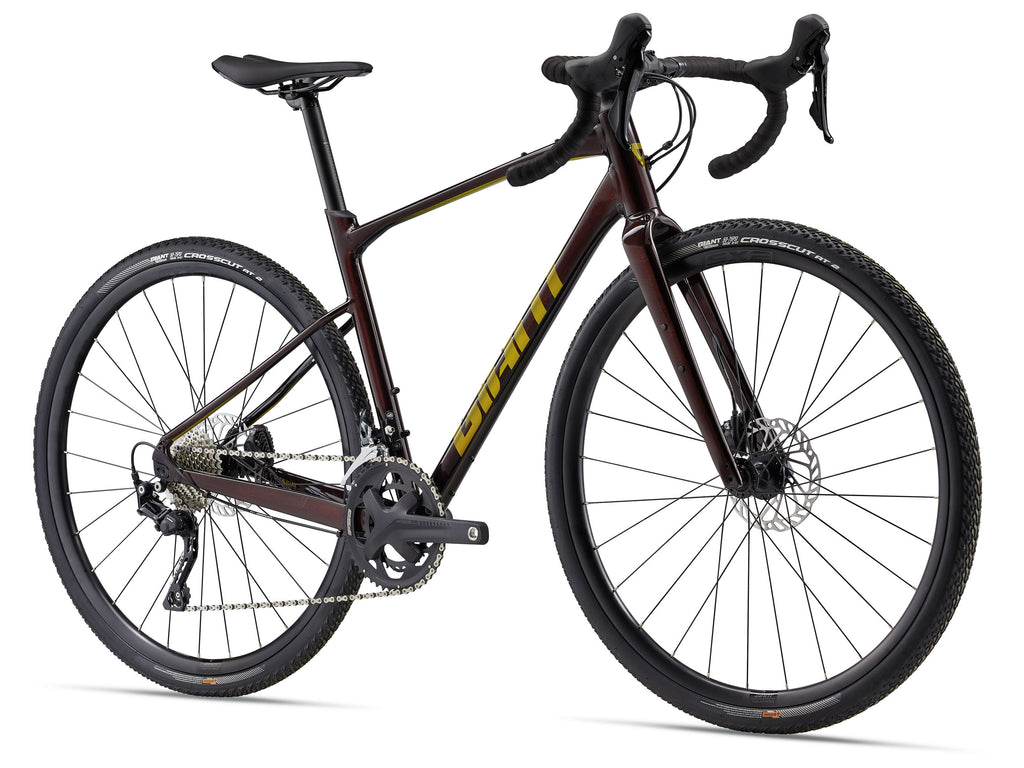

  • Giant bicycle on a white background

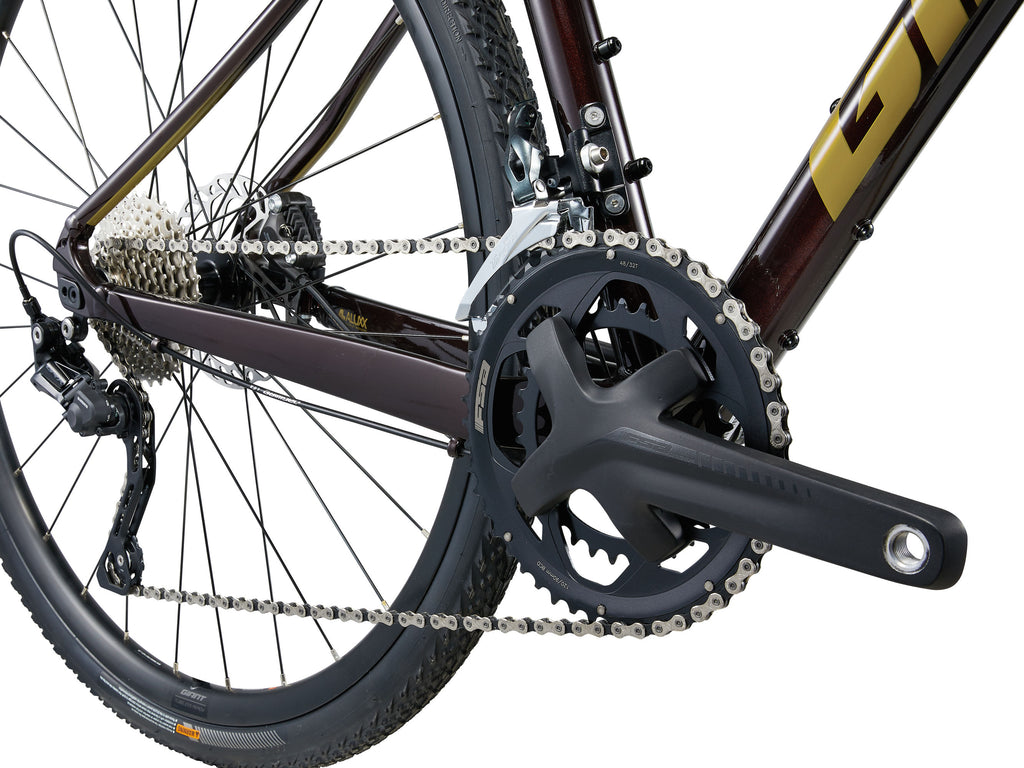

  • Close-up of a bicycle chain and gear system on a white background

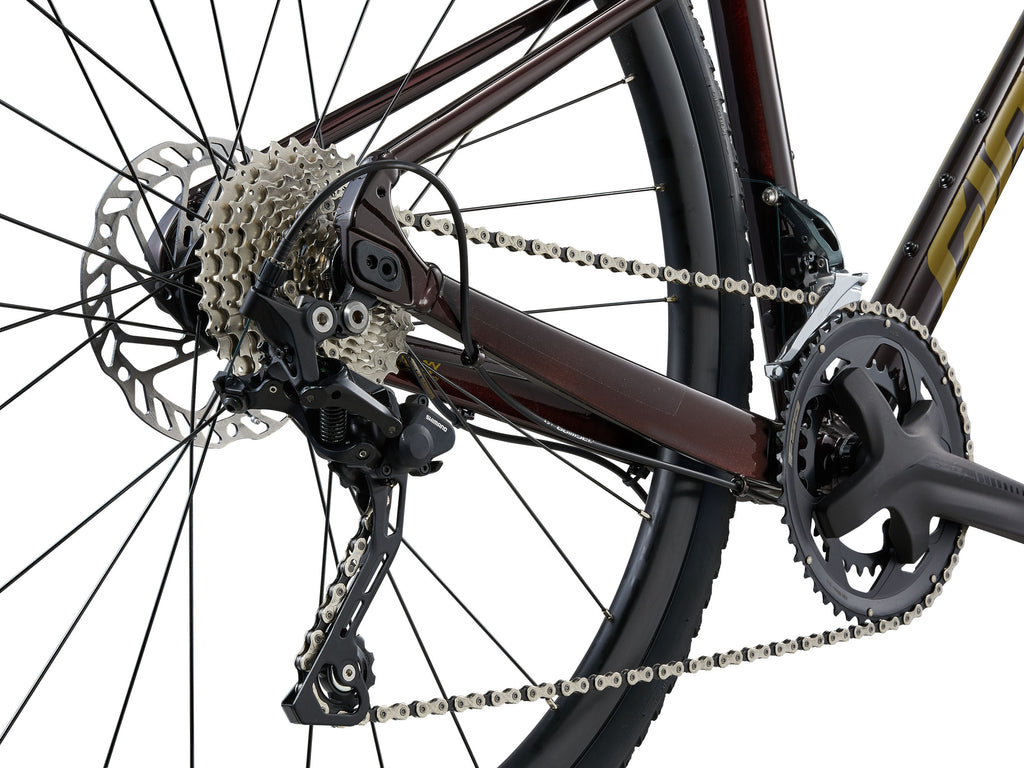

  • Close-up of a bicycle's gear system on a white background

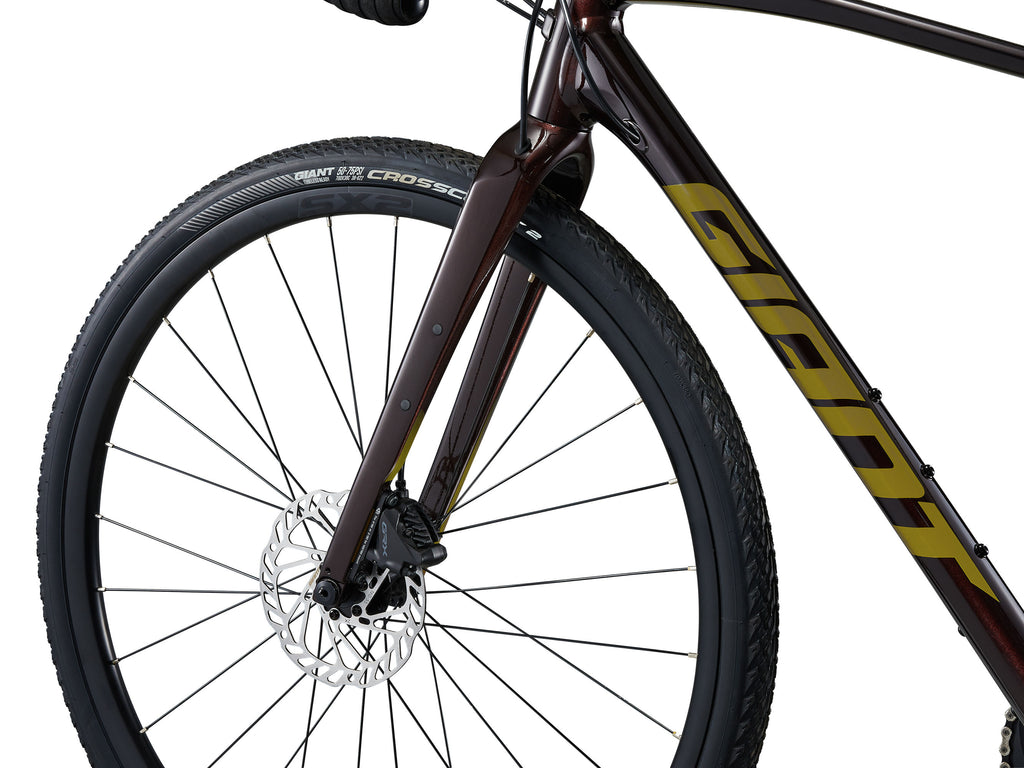

  • Close-up of a bicycle wheel with 'Giant' branding on a white background

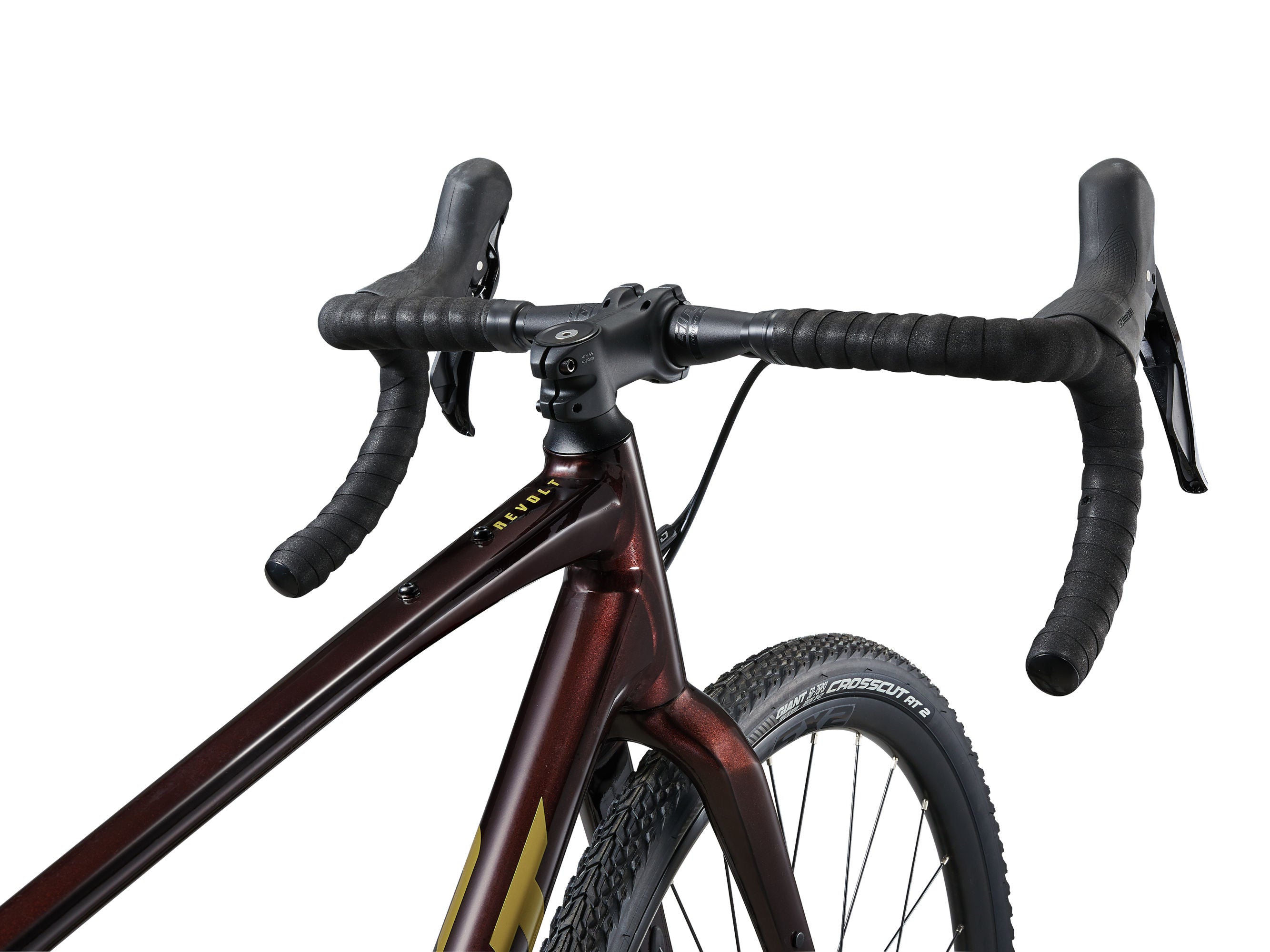

  • Close-up of a bicycle handlebar and frame on a white background
Revolt 1

Giant

Revolt 1

$1,341.00
$1,341.00 $2,200.00

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

ColorCordovan
Size

Confident handling - Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance - Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain - A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications:

Frame:

ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

Fork:

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar:

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips:

Cork tape with gel

Stem:

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost:

Giant D-Fuse, alloy, 14mm offset

Saddle:

Giant Approach

Shifters:

Shimano GRX RX-400, 2x10

Brakes:

Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake levers:

Shimano GRX RX-400 hydraulic

Cassette:

Shimano HG500, 11x34

Chain:

KMC X10 with Missing Link

Crankset:

FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Rear rim:

Giant S-X2 Disc wheelset, alloy

Hubs:

Giant alloy, 12mm thru-axle

Tires:

Giant CrossCut AT 2, 700x38c, tubeless | Extra - tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
