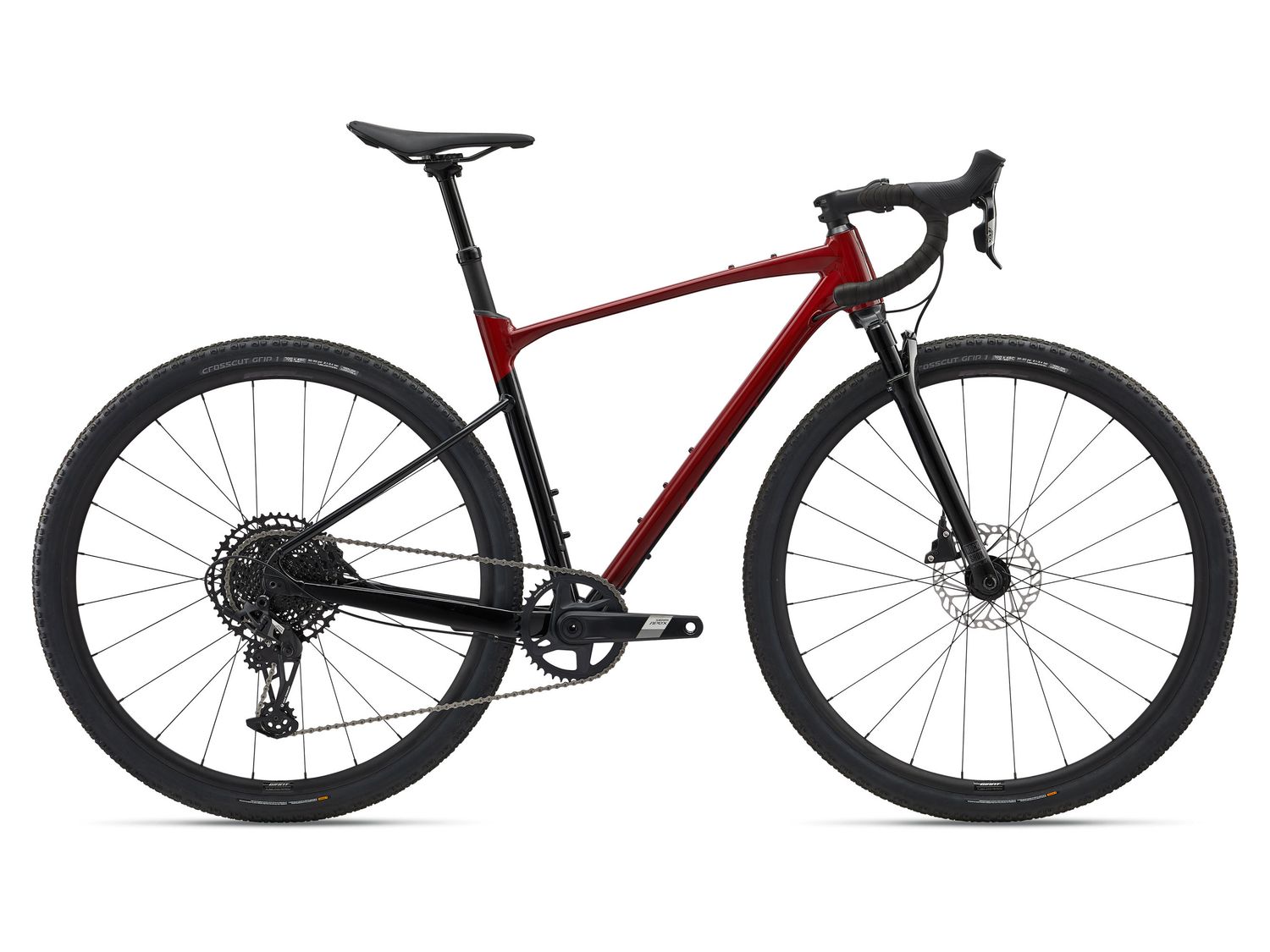

Revolt X 1
$3 300.00
Unlock new terrain with Giant's progressive gravel bike featuring front suspension. The lightweight aluminum frame has suspension-optimized geometry and a flip chip that lets you adjust wheelbase and tire clearance for any adventure.
Color
Size
Please choose
In stock
Save this product for later
Revolt X 1
Product Details
Brand: Giant
Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
Handlebar: Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cmtc
Saddle: Giant Approach
Seatpost: Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
Bottom Bracket: SRAM DUB, press fit
Crankset: SRAM Apex D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Cassette: SRAM PG-1210, 12-speed, 11x50
Brakes: SRAM hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: SRAM Apex
Grips: cork tape with gel
Stem: Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
Shifters: SRAM Apex, 1x12
Front Derailleur: N/A
Rear Derailleur: SRAM Apex, 1x12
Rims: Giant P-X2 EVO Disc wheelset
Hubs: Alloy
Tires: Giant CrossCut Grip, 700x45c, tubeles | tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Smooth control - Lightweight aluminum frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.
Tuned compliance - Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain - A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included suspension/dropper seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
